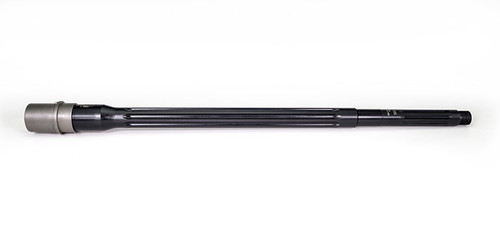

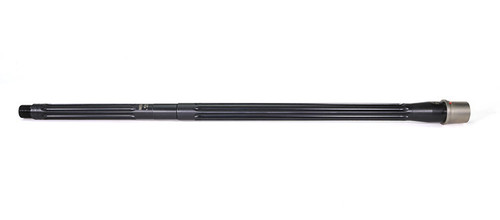

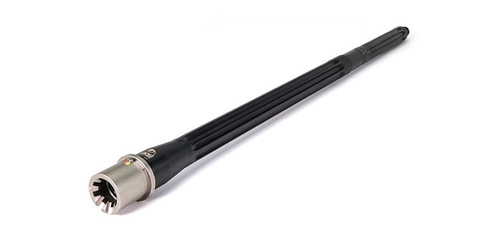

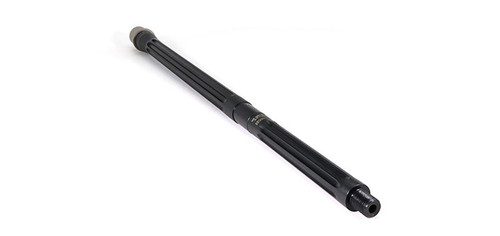

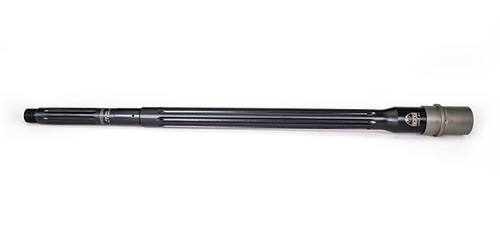

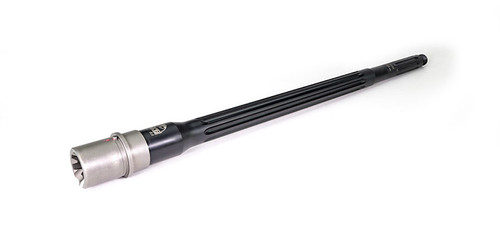

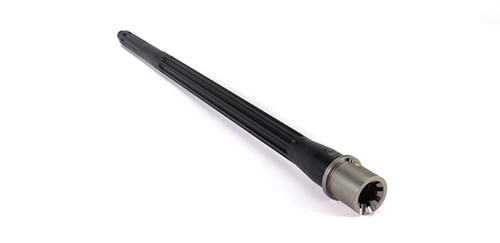

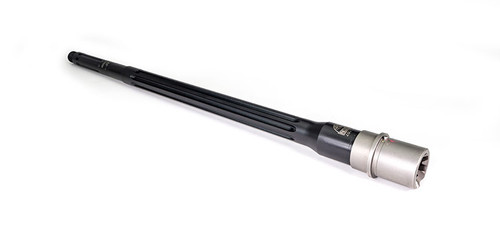

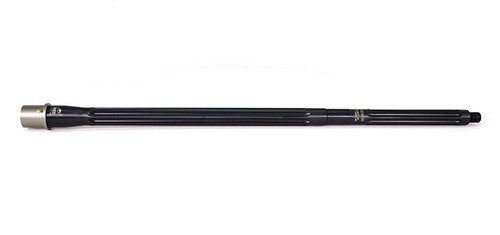

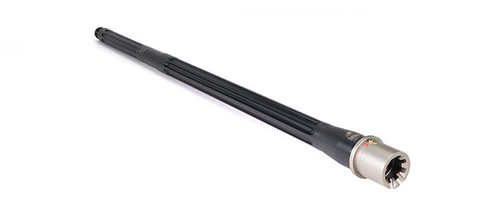

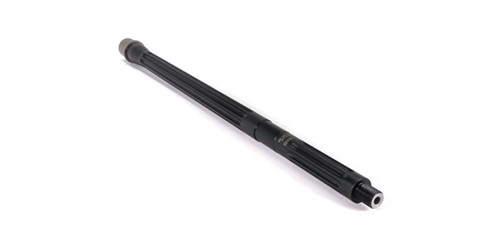

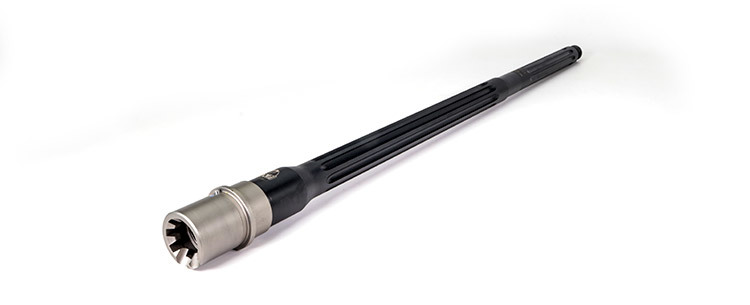

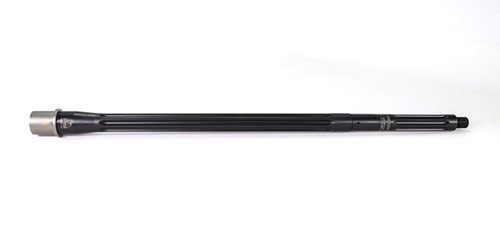

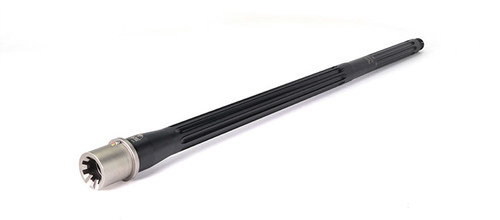

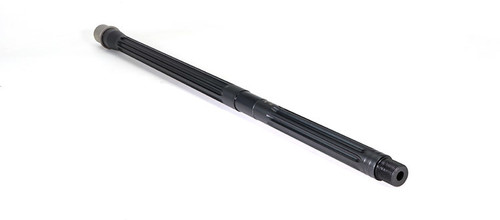

Faxon Match Series- 20", Heavy Fluted, .308 WIN, Rifle-Length, 416-R, QPQ, 5R, NP3 Extension

Retail: $349.00
$331.55
( saved $17.45 )
No reviews yet Write a Review
Adding to cart… The item has been added
SKU:
10B810R20FHQ-5R-NP3
  • Free Shipping

  • Fast Delivery

  • Safe Payments

  • Amazing Selection

Faxon's .308 continue their fantastic barrel-making with a bit more punch.

Faxon Firearms barrels are the pinnacle of value. Manufactured 100% in-house from cradle-to-grave, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.

Quality is imbued into their barrels from the start. They start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.

Faxon manufactures all barrels in Cincinnati, Ohio under our ISO:9001 and AS:9100  quality certifications.

  • Barrel Material: 416-R
  • Barrel Type: 5R Button Rifled
  • Barrel Caliber: .308 WIN
  • Barrel Twist: 1:10
  • Barrel Length: 20
  • Barrel Profile: Heavy Fluted
  • Barrel Gas System: Rifle (1.1" Journal)
  • Inside Finish: Nitride QPQ
  • Outside Finish: Nitride QPQ
  • Muzzle Thread: 5/8-24 TPI
  • Gas Block Diameter: .750"
  • Gas Port Diameter: .092
  • Gas Block Journal Length: 1.1"
  • Barrel Extension: Nickel Teflon Coated DPMS LR-308 Compatible
  • Barrel Weight: 2.4 Lbs
  • Magnetic Particle Inspected!
  • 11-degree Polished Target Crown

*Note - Faxon Firearms barrels are chambered to SAAMI specification .308 Winchester at a nominal headspace depth (passing "Go" and failing "No-Go"). This ensures maximum safety and accuracy.

7.62x51 NATO is not the same round as .308 Winchester, though it will fit within chamber. 7.62x51 technically requires deeper headspacing to meet the military specification and is known to function in Faxon .308 WIN barrels under most circumstances. However, due to the variation of components in the .308 AR world and variations between loadings, Faxon cannot guarantee or warrant function with 7.62x51, especially with bolts with tight ("match") .308  WIN headspacing.

Material:
416-R Stainless
Inside Finish:
Nitride
Outside Finish:
Nitride
Color:
Black
Barrel Type:
5R Button Rifled
Caliber:
308 Winchester
Profile:
Heavy Fluted
Length:
20"
Twist:
1:10
Muzzle Thread:
5/8x24
Gas System:
Rifle
Gas Block Diameter:
.750"
Gas Block Journal Length:
1.1"
Barrel Extension:
LR-308 - Nickel Teflon Coated
Gas Block Included:
No
