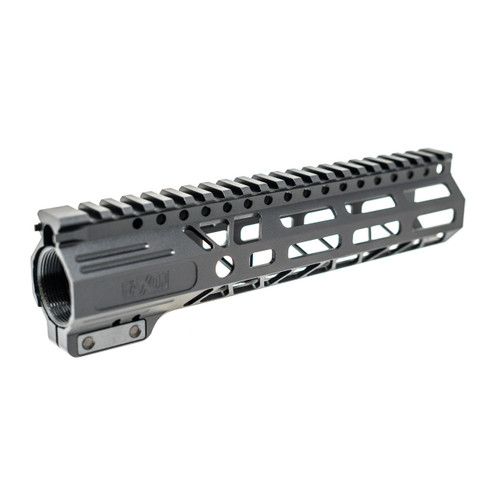

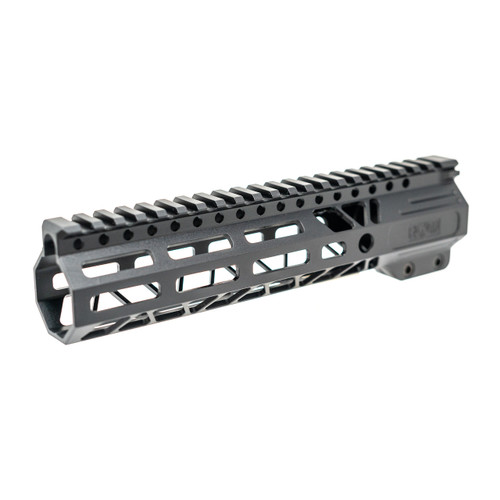

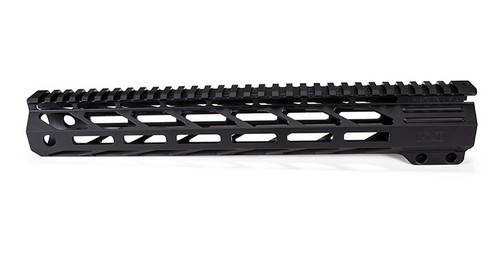

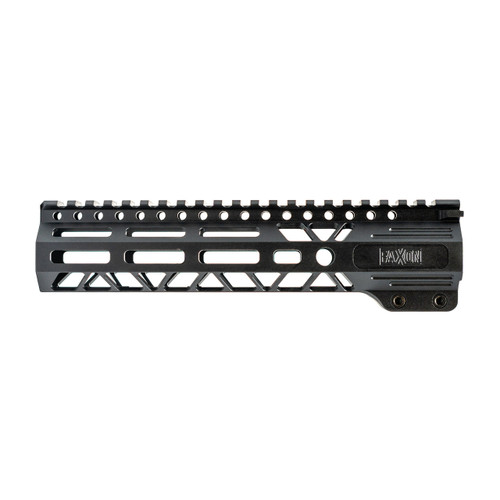

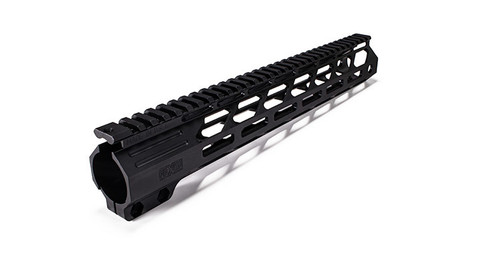

Faxon’s Streamline handguards are a sleek and low-profile solution for those looking for a slimmer handguard with flexible mounting. Featuring an uninterrupted MIL-STD 1913 “Picatinny” rail across the top and 3 facets of M-LOK cuts, the Streamline Aluminum Handguard is a lightweight and sturdy mounting system. The handguard is 100% made in the USA from extruded 6061 aluminum, hard-coat anodized black and comes a steel barrel nut. Mounting is extremely simple with common tools and the handguard features alignment tabs to ensure it cannot rotate during vigorous movement.
Features and Specifications:
- Height (Flat to Flat): 1.54"
- Max Outer Diameter (Peak to Peak): 1.67"
- Max Inner Diameter: 1.34"
- Construction: 6061 Aluminum - Hard Coat Anodized
- Accessory Mounting: M-LOK
Installation Instructions:
- Torque barrel nut to industry specs using 1-1/4” wrench to at least 35ft/lbs but no more than 60ft/lbs. DO NOT OVER-TIGHTEN.
- Install handguard over the barrel nut aligning the upper receiver rail between the alignment tabs.
- Install locking plate into the recess on the handguard and thread both bolts through the handguard and into the locking plate. Torque bolts to 32 in/lbs.
- After the initial live fire test, check to make sure the bolts are still tight and not walking out.
